Foam Plate and Plastic Straw Gliders


FG1



FGUnder

Ideas and Inspiration

In my presentations lately I have been talking much about “ideas and inspiration”. The FPG9 foam plate glider designed by Jack Reynolds has been a huge inspiration for me to expand on the idea of quick to build gliders built primarily out of foam. I was introduced to this simple glider through the activities of the Academy of Model Aeronautics and their Aerolab program. From their inspiration I have introduced the FPG9 to other people including a local hobby shop owner Kevin Guy who has introduced the FPG9 to hundreds of young people. The Civil Air Patrol has recently partnered with AMA and is inspiring thousands of young people with ideas in aviation.Instead of a gradual progression of difficulty, I jumped ahead to a more ambitious foam gliders first the Foam Jet II and then the Hammer Down Catapult Glider. My thoughts lately have turned to creating gliders from only foam plates and plastic straws held together with masking tape.
FoamGlider



Combine a lesson of the basics of flight and practical math in
Basic  Aerodynamics With a Lesson
TurnWithRudder
TomFooleryGlider

Traditionally model airplanes have been constructed with balsa wood or a balsa framework covered with tissue or thin paper. I really like working with balsa wood; it is so easy to cut, bend, sand, and glue together. Incredibly lightweight structures can be built from balsa wood. The record duration flight for a model airplane powered by rubber flown indoors in a very large room is over one hour built from balsa with a very lightweight covering.So why use foam? Foam is light in weight, has no grain, water resistant, easy to obtain and inexpensive. The last two items were the most important to me for what I was trying to accomplish in model airplane workshops. I wanted material that was easy to obtain almost everywhere so materials that could be found at grocery stores seemed like a good bet. For that reason I have been concentrating designing model airplanes that could the common 9” diameter foam plate which is available in stores everywhere. The small amount of available foam does impose a constraint that I have been able to work around. Larger sections of foam could be in 10” foam plates or carryout containers but I wanted to design airplanes that used the foam that didn’t have to be saved or obtained food supply houses.

FGLeft2 FGRight2
The FPG-9 by Jack Reynolds was my main inspiration for building new designs of foam gliders. Slightly modified version of FPG-9 glider. The vertical fin is shaped different and the penny is taped to the area of the bulge in the front.

Newest Video of Flight Club Glider Flights

Why This is a Great Activity

* Very inexpensive and easy to find materials.

* Most people are thrilled to build something that flies.

* Gliders can be flown in fairly small areas indoors such as hallways, lunch rooms, theatre, or classrooms.

* Safe to build and fly only a scissor needed for tools.

* Much can be learned from doing small adjustments about aerodynamic theory.

* This can be a very creative activity.

What are The Very Basics A Glider Needs to Fly

FG3

Lift – the majority of the lift for the glider will come from the wing, if the wing has a slight curve in it, known as
“camber”, the lifting force will be greater. If the curve is too great, the wing will generate too much drag and the glide will not be good. A flat wing will generate lift but not as well as a wing with some camber.



Stability – the glider needs some stability to fly through the air in a fairly level manner. Without stability it would tumble or dive straight into the ground. For your gliders you will need the glider to balance at close to a spot 1/3 of the width of the wing back from the front of the wing. For less conventional type gliders such as flying wing or canard (tail first) this will be different.

To keep your glider from tipping too much from side to side stability is normally achieved through “dihedral” which is where the wings angle upwards from the center out to the ends of the wings. Sometimes the center of the wing is flat but it angles upward just towards the ends of the wing.

Lift : Different Airfoils Will Affect Properties of Lift

FGLeft4 FG4Right
Flat Plate airfoil simple but not the best performing airfoil. Airfoil for gliders will typically look like this with just a slight curve.
FG5Left FG5Right
Airfoil with this much curve (camber) would create too much drag for a good glide. Another method to create an airfoil is to create a bend over a straight edge.

FG6Mid

Glider will gradually drop at an angle known as the “glide angle”. If the angle is steep the distance traveled will be short.

This illustration and the next come from a lesson plan created by Gary Hinze, known as the Simple Gliders Curriculum

FG7Mid

The length that a glider will travel is determined by the “lift to drag ratio” often expressed as L/D. To be more efficient the wing should produce the lift needed to keep it flying while producing the least amount of drag. Factors for drag would be the airfoil, shape and size of the wing.

Stability : Dihedral is Primary Method for Stability in Roll
FG8MiddleCenter of Gravity
FG9MiddleGliders with a fuselage normally should balance at around 1/3 of the width of the wing back from the front of the wing. This gives the glider stability in pitch.

General Building ConceptsFG10Middle

Typically these are all the materials needed to create the gliders: foam plates, plastic straws, masking tape, and clay.Tools

FG11Left FG11Right
The only tool really needed are scissors for this project. To draw straight lines it can be helpful to have rulers.

More About Materials

FG12Left FG12Right
To build a bunch of gliders you will probably need to purchase the straws at a grocery store. These straws might be shorter than the ones found at fast food outlets but it is easy to splice straws together. There seems to be a fair amount of difference in the cost of masking tape, the cheaper prices seem to be where it is sold in paint department.

Ideas for Wing Shapes

Even with the limited amount of useable foam in a 9” foam plate, it is possible to make many different wings using multiple plates. The following are some ideas I have tried.

 FG13Left FG14right
Using just two foam plates and splicing in the middle, it is possible to make this wing with a double taper. Looks like a good wing for a jet aircraft. This wing is made from just two plates by creating a straight center section from one plate and the two tip pieces from another plate. With no joint in the middle this should make for a stronger wing.
FGLeft15 FG15right
This is a glider using the double taper wing. With the straw taped to center of wing at dihedral joint it makes for a strong wing. I have been trying to limit the foam planes I build to that which can use the 9” diameter plates easily found in any grocery store. There are 10” diameter plates but are not easily found.
FG16left FG16right
Larger sections of flat foam can be found from many sources like this foam “to go” container. Problem is most likely you will not be able to purchase these containers in grocery stores.
The flat surface area in a 9” foam plate is just shy of 5 ¾” diameter or about  25.97 square inches.

Cutting Wing Sections From Foam Plates

On one edge you will need an almost straight edge from the plate so this will further reduce the length of foam available from 5 ¾”. This means one wing half from a plate or possibly two wing tips and a center section from two plates. There might be enough extra foam for in one wing half plate for horizontal stabilizer too and from another wing half plate the vertical fin could be cut also.

FGLeft17 FGLeft18
The vertical line at the left side of foam is where you need to cut the foam so it will match up with the her wing half.
There might be just enough foam from a wing half to cut out the horizontal stabilizer.
FGLeft18 FGRight18
With the left over area from one wing half there might be enough foam left to cut out the vertical fin also. This is how the curve was put in the foam for the wing, roll a dowel on the bottom of the surface so it starts to curl.
FGLeft19 FG19Right
This is a side view of what the tape angle should look like. Stick one side of angle to straw side and the other sticky side should stick out level with top of the straw.
FGLeft20 FGright20
This is how the tape should be sticking out from the straw, the top surfaces should be sticky. The vertical fin is attached to the stabilizer by using
a 90-degree tape angle on each side of the vertical fin and the tape sticking out is pressed down on the stabilizer.
FG21Left FG21right
In this picture I used green masking tape
and drew a dark line at the joint between
vertical fin and stabilizer to better
demonstrate the attachment method.
Another view looking down.
FGLeft21 FGRight21

Joining Straws Together

To create a longer fuselage, straws can be easily spliced together by squeezing the end of one straw and pushing it into the inside of another straw.

FG22Left FGRight22
Squeeze the end of one straw so that one side bends inward. Push the squeezed end into the fully open end of the other straw until it will not push any farther.
FGLeft23 FGRight23
This is what the joint should look like. Wrap masking tape over the joint where the seam between the two straws is visible.
FGLeft24 FGRight24
Wing halves are joined with masking tape joined
down the center. I start with putting tape on the
top first and then on the bottom. Try to get the
tape to cover equally each wing half down the
middle and raise one wing up while taping to
get dihedral in the wing. Wrap around the leading and trailing edge slightly. Use another length of
tape across the bottom.
Bend two lengths of masking tape the
width of the wing at a 90 degrees
down the middle to serve as a bracket to attach the  plastic straw fuselage to the center of the wing.
FGLeft25 FGRight25

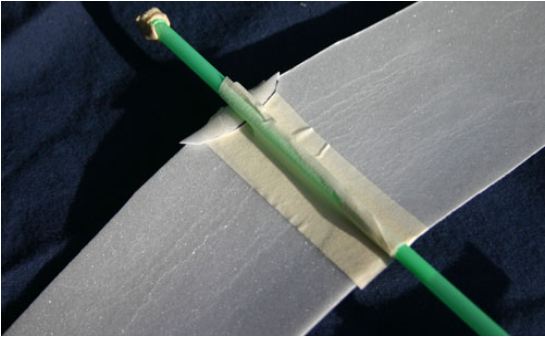

If the wing is on top of the fuselage, I would suggest a small foam shim be placed between the bottom of the wing and the straw fuselage.
Straw glider will need some nose weight
to achieve proper Center of Gravity
balance point. Press the clay into the
end of the straw, it easy to add or take
away small amounts of clay to get the
correct balance point. You may wish to remove a tiny amount of clay and tape over the clay so it does not fall off.

FGMiddlet26Completed glider, be sure to read instructions on launching and adjusting.

Launching Foam plate and Straw Gliders

Gliders made from foam plates and straws most likely will not handle a toss with a large amount of speed. The foam and plastic straw will flex at high speeds and make consistent trim adjustments difficult. Your gliders will be better launched level with medium force. If you can find a balcony which provides a safe  place to launch your glider from a higher altitude that works really well.

FGLeftt27 FGRight27
Gripping the straw underneath the wing is slightly difficult so I created a tab from masking tape doubled over to grab when launching. Glider launch tab grasped between thumb and forefinger, release at this point level or slightly down.
FGLeftt28 FGRight28
If the glider has too much lift the nose will rise up until the angle of attack increases too much causing the glider to loose lift. At this point normally the nose will drop and the glider will go into a dive.
If the glider is balanced with too much weight ahead of the CG or the angle of attack is not great enough it may dive towards the ground.

This glider went into a stall when launched into wind outdoors and then into a very steep dive.

Launching from a Balcony

FGLeft30 FGRight30

If there is a safe spot to launch gliders from such as a balcony it gives for a longer flight and a better chance to observe the flight characteristics. It also gives the glider greater potential energy.

Making Adjustments to the Flight Path – Trimming

Tiny adjustments can be made to the tail surfaces of the glider to change the flight path of the glider. By bending the rear edges of the foam on the vertical fin for turning or the rear of the stabilizer for changes in pitch. Adjustments to the foam need to be really tiny with deflection from straight being no more than 1/16”.

The rear edge of the vertical fin that moves is known as the “rudder”. Bending the rudder trailing edge towards the right should alter the flight path to the right. Bending to the left will cause the opposite reaction.

The rear end of the horizontal stabilizer can be adjusted up or down also which is known as the “elevator” on airplanes with movable surfaces. Bending the surface upwards should cause the glider to climb, bending down will do the opposite.

FGLeft31 FGRight31
For right turn bend rear edge of vertical fin towards the right by a tiny amount. Bend to the left for left turn.
Bend the rear edge of the horizontal stabilizer upward if the glider is diving in the glide. Bending downward if the glider is stalling.

Hand Launch Glider Books


More Ideas for Gliders

FGLeft32 FGRight32
This is a “canard’ glider which means the small wing is in front. The Wright Brothers used this configuration on all their gliders and powered airplanes.
Using three foam plates it is possible to make a flying wing glider with a much longer wingspan. This is known as “high-aspect ratio” and improves the efficiency of the glide beyond just adding wing area.
FGLeft33 FGRight33

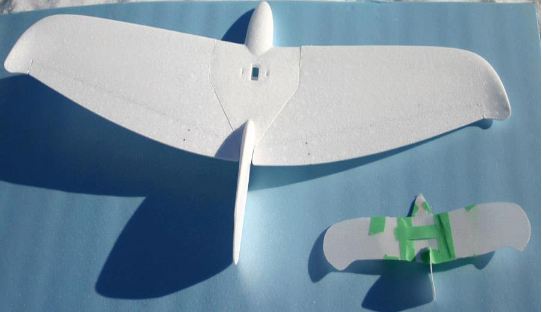

Ideas for simple foam gliders can come from anywhere, I just received a radio
control glider kit the “Alula” which
has a shape like a hawk. With some foam plates I created a free flight glider
with much of the same look.
Using more area from the foam plate by using part of the curved portion of the plate.

Student Designed Gliders

FGLeft34 FGRight34
Student designed and built gliders for College for Kids class. This glider flew pretty good when launched from
balcony.


Educational Aspects

FGLeft35 FGRight35
Potential Energy – the altitude above the ground gives the glider potential energy as gravity pulls it along the glide path.
Kinetic Energy – after the glider is launched the mass of the glider moves with the kinetic energy given to it by the throw and the glide down the glide path. Drag will oppose this force.

 Related Articles

Efficiency in Model Aviation

 Simple Glider Curriculum

  Basic Aerodynamics with a Lesson

Rubber Powered Foam Model Airplanes

SimpleFoamBanner

Want to learn More and Connect With Others on Simple Foam Free Flight Airplanes
 Join My Facebook Group for Simple Free Flight Foam Airplanes
